DVE2 SERIES

Available for the sector
  • Greenhouses

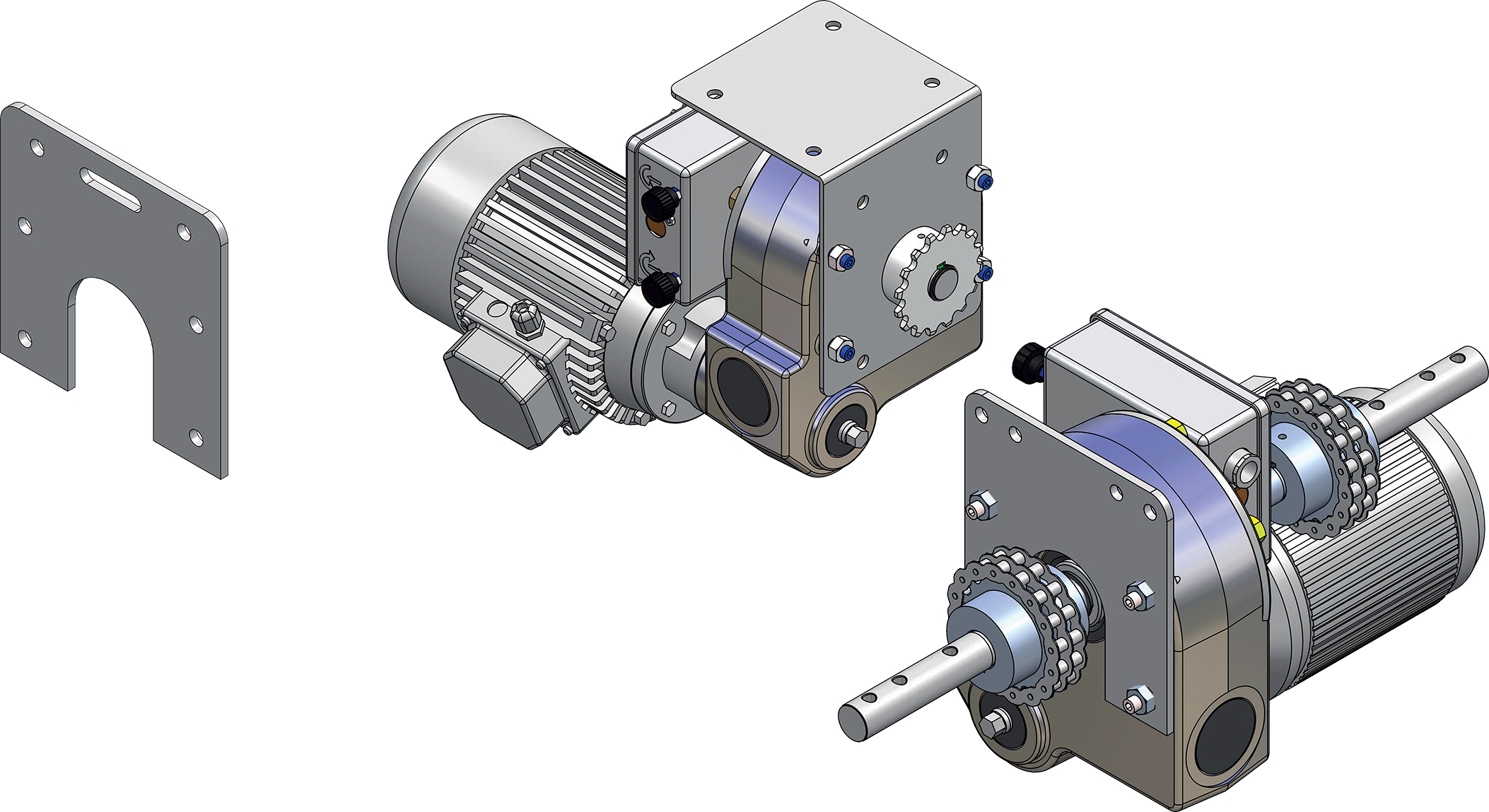

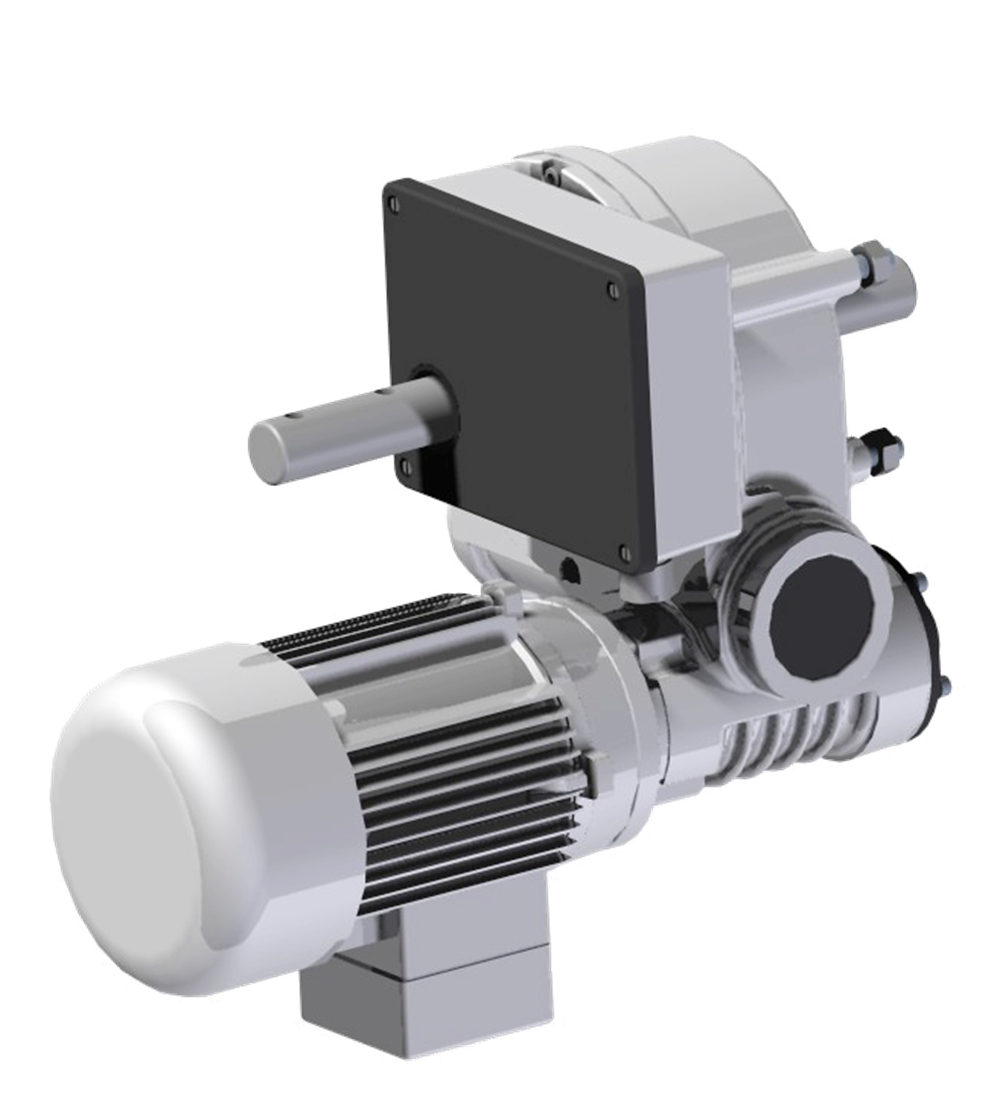

Integrated gearmotor with compact design fit for top vent in multi-span tunnels and greenhouses of medium/large dimensions. It is available in the 1.7 RPM or 2.5 RPM version. Its compact size allows for an easy mounting on every sort of structure or greenhouse.

Item code Ph Hz Kw A V Rpm Nm Kg
DVE2*1450-.... - 3ph-50Hz 3 50 0.37 1.2 230-440 2.6 400 20
DVE2*1475-.... - 3ph-50Hz 3 50 0.55 1.7 230-440 2.6 440 20
DVE2*141-.... - 3ph-50Hz 3 50 0.75 2.1 230-440 2.6 490 22
DVE2*950-.... - 3ph-50Hz 3 50 0.37 1.2 230-440 1.7 440 22
DVE2*1450M-.... - 1ph-50Hz 1 50 0.37 3.2 230 2.6 350 22
DVE2*141M-.... - 1ph-50Hz 1 50 0.75 5 230 2.6 430 22
DVE2*1450-.... - 3ph-60Hz 3 60 0.44 1.7 277-480 3 380 20
DVE2*1475-.... - 3ph-60Hz 3 60 0.65 2.5 277-480 3 410 20
DVE2*141-.... - 3ph-60Hz 3 60 0.90 3.5 277-480 3 450 22
DVE2*141-.... - 3ph-60Hz 3 60 0.44 1.7 277-480 2 420 22

Our technical office is at your disposal to optimize and suggest the best solutions.
