PRP3 SERIES

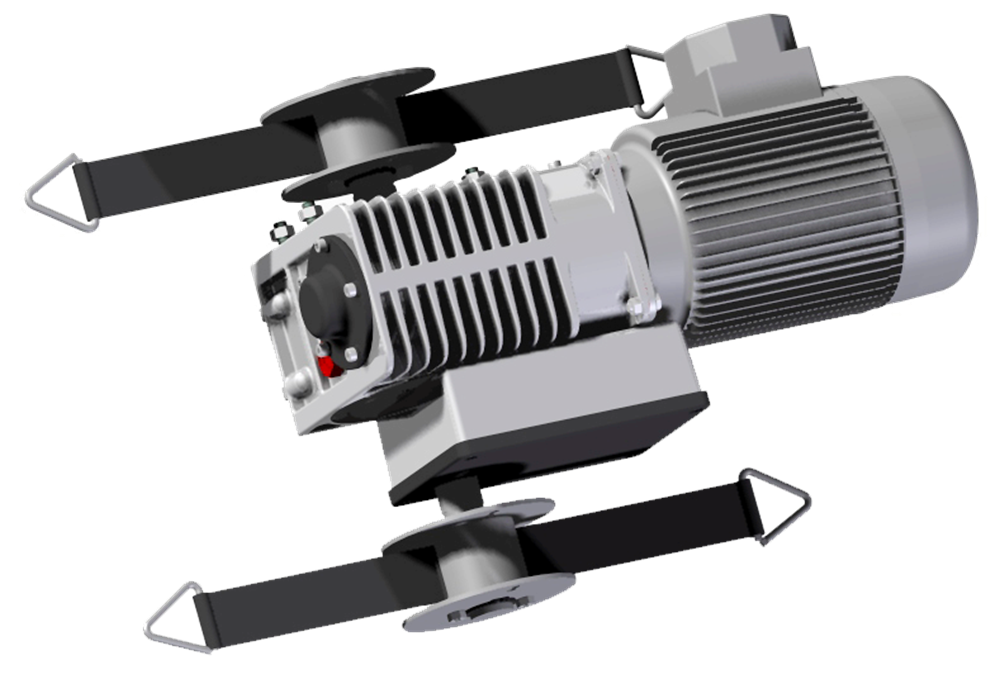

Gearmotors Series PRP3
Available for the sector
  • Poultry Farms

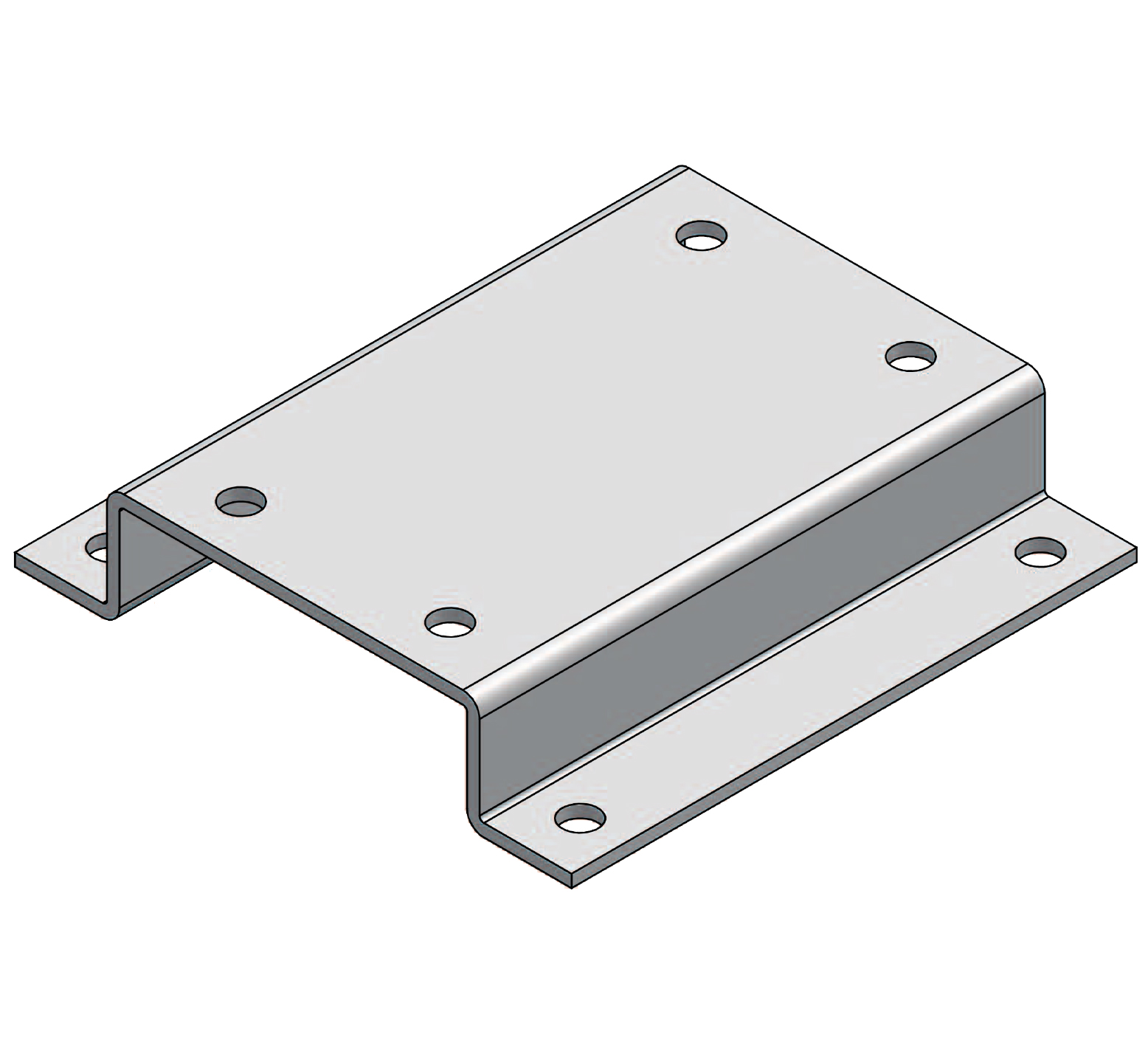

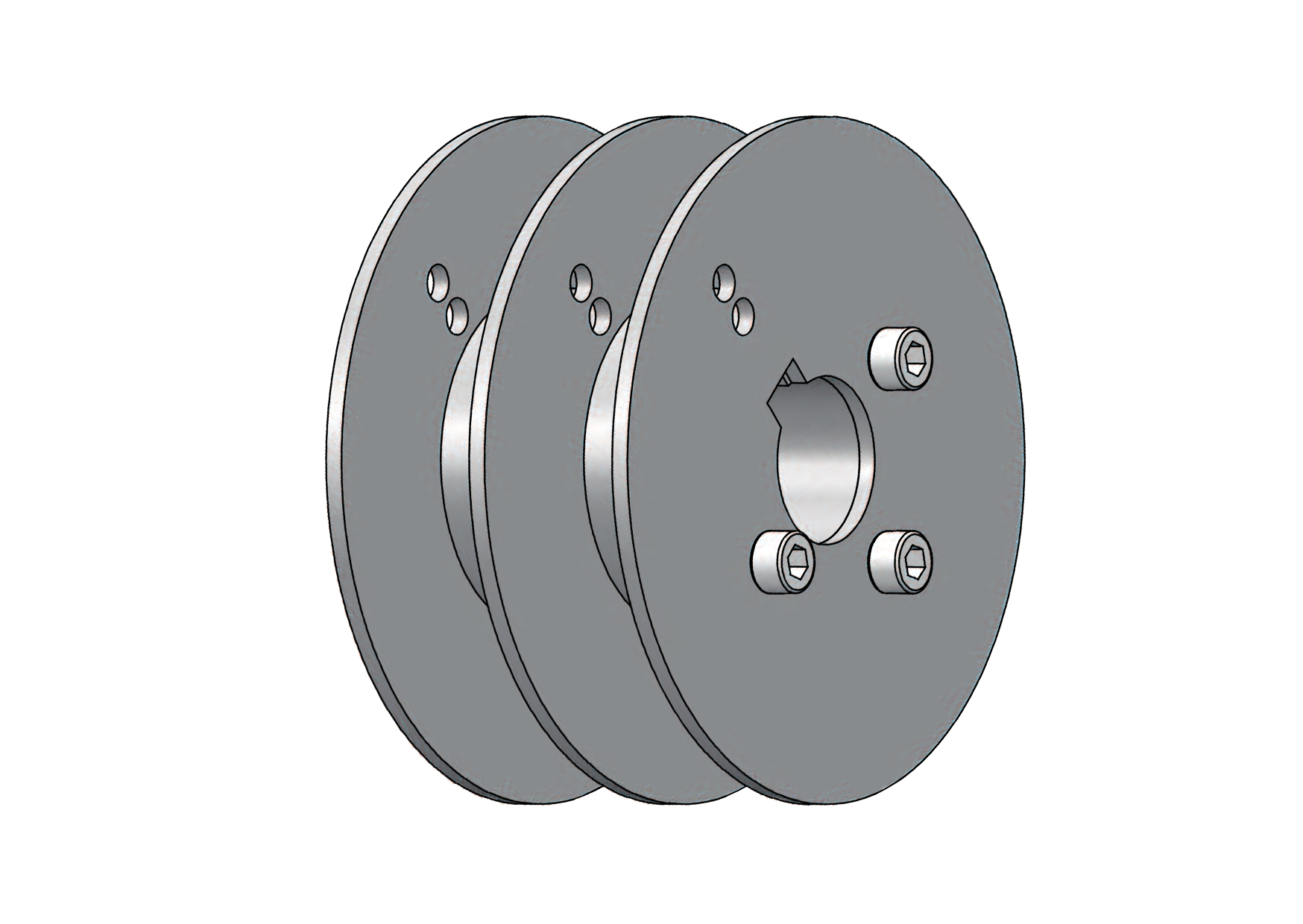

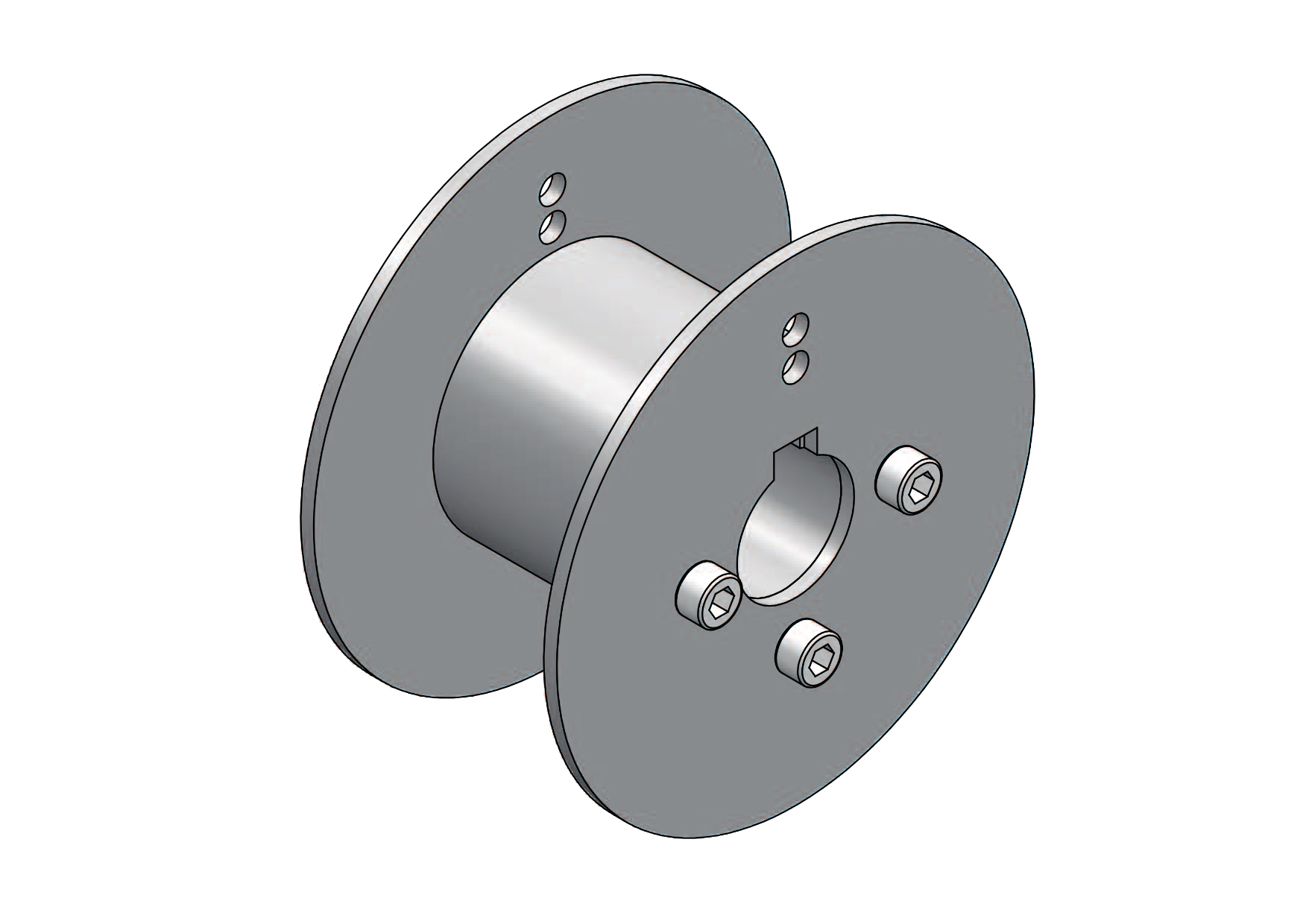

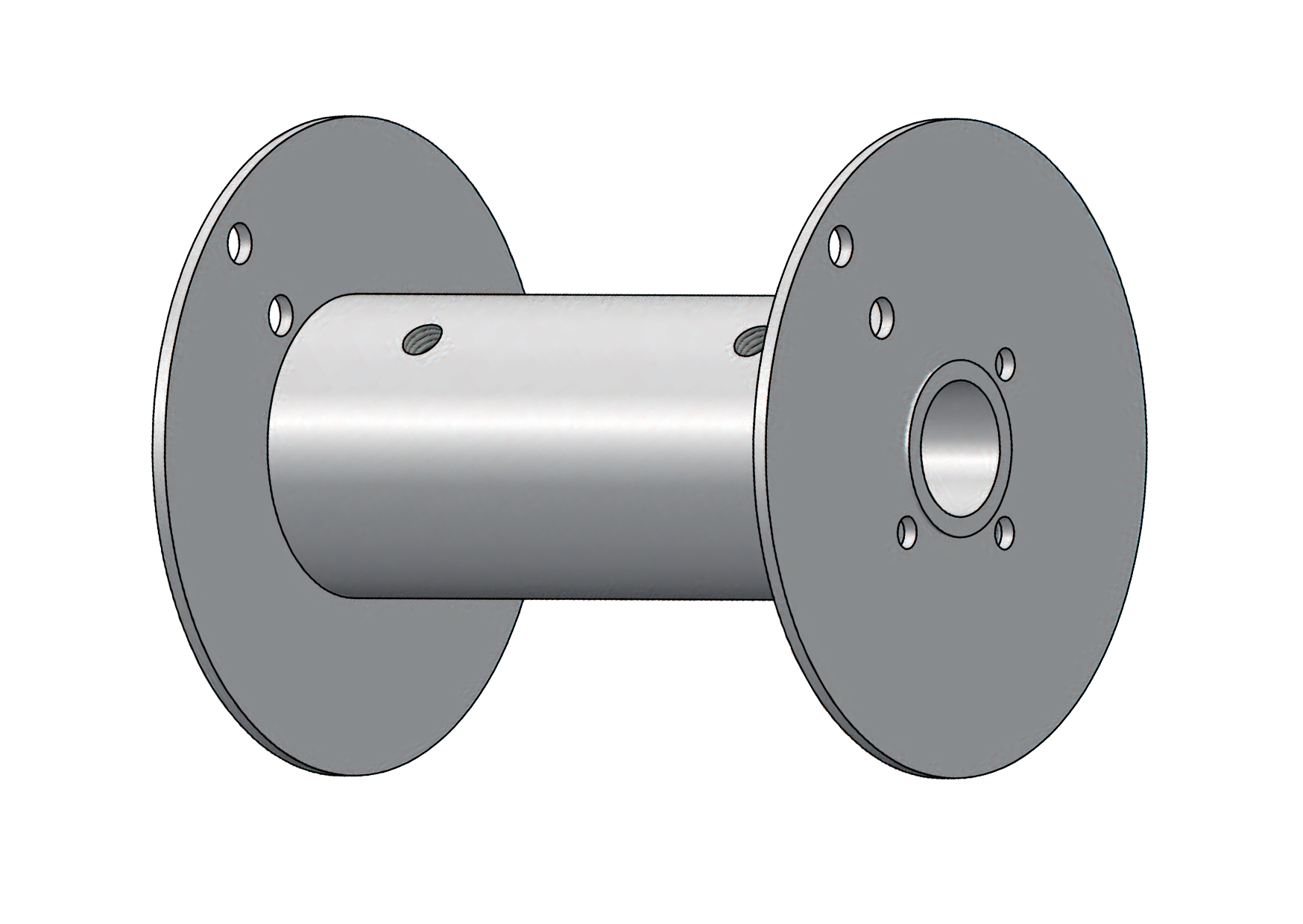

This model is devised for side opening with rack system in small/medium structures . The gearbox can be supplied with the mounting plate and pulley (single or double) for wall or ceiling setting.

Item code Ph Hz Kw A V Rpm Nm Kg
PRP3-1435-.... - 3ph-50Hz 3 50 0.25 0.9 230-440 3 280 14
PRP3-1450-.... - 3ph-50Hz 3 50 0.37 1.2 230-440 3 300 17
PRP3-1450-.... - 1ph-50Hz 1 50 0.37 3.9 230 3 280 15
PRP3-1450-.... - 3ph-60Hz 3 60 0.44 1.5 277-480 3 280 17
PRP3-1435-.... - 3ph-60Hz 3 60 0.33 1.4 277-480 3.2 270 14

Our technical office is at your disposal to optimize and suggest the best solutions.

Call us: + 39 0184 476420 or send us an email: m.digitali@vialesistemi.com
