Racks series CDH

Available for the sector
  • Poultry Farms
  • Greenhouses

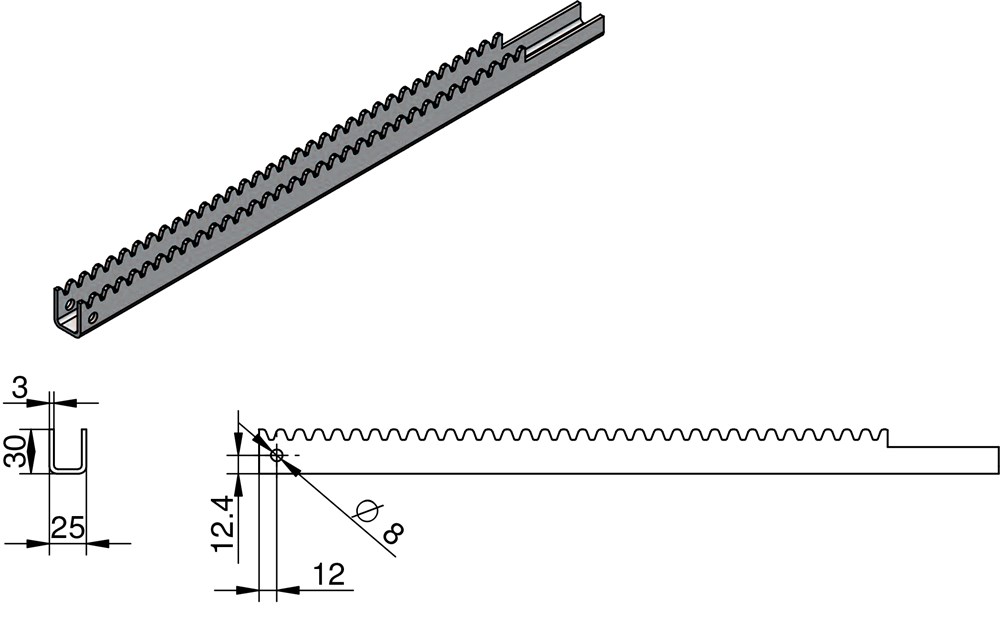

U-Profile Rack with double toothed edges in steel DX51D+Z275, 3 mm thickness, and cold-profiling manufactured.

The rounded tooth limits the wearing out and reduces the friction between rack and pinion. The pinion cage, made in galvanized sheet, has 3 locking points that guarantee a firm fastening; its 2 rollers make for a smoother sliding of the bar. The pinion, in self-lubricating synthesized material, is fastened to the driving tube by 2 set of screws 8x12. The high-precision manufacturing of the bar profile makes this rack an excellent product for those who want high performances.

Our CDH Rack is ideal for vents of medium or large dimensions for a higher resistance to the buckling point. Its lengths go from 600mm up to 5000mm (straight or curved); maximum curve’s length: 1500mm.

Our technical office is at your disposal to optimize and suggest the best solutions.
